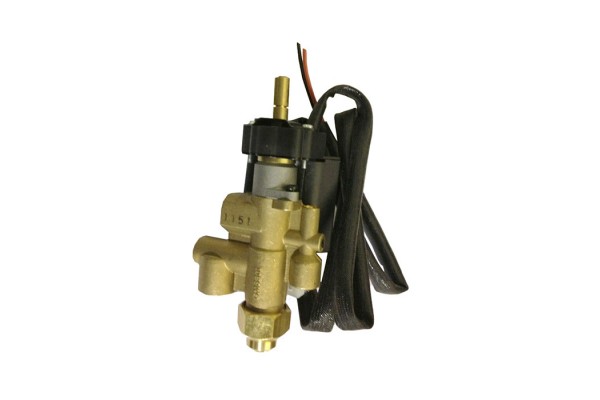

Real Fyre Replacement Valve for APK-17

The Real Fyre replacement control valve is designed for the Real Fyre APK-17 low-profile safety pilot system. It replaces the original valve when the existing control becomes worn, damaged, or no longer regulates burner operation properly.

As part of the APK-17 system, the valve provides ON/OFF burner control and variable flame-height adjustment while working with the standing pilot and thermocouple safety system. When connected to the compatible Real Fyre remote system, flame height can be increased or decreased from the handheld transmitter; the burner can also be operated manually at the valve.

The valve is used in compatible Real Fyre APK-17 natural gas and propane control systems installed on select Real Fyre G4, G45 standard, G45 see-thru, and P-Series burners. When installed as part of the complete APK-17 system, maximum input is 100,000 BTUs for natural gas and 200,000 BTUs for propane.

This is the replacement control valve only. The pilot assembly, VR-1A remote system, wire harness, heat shields, and other APK-17 components are separate replacement parts unless otherwise specified.

Warranty: The Real Fyre APK-17 control system, including the -17 control valve, is covered by a two-year limited manufacturer warranty for the original purchaser when properly installed, operated, and maintained.
